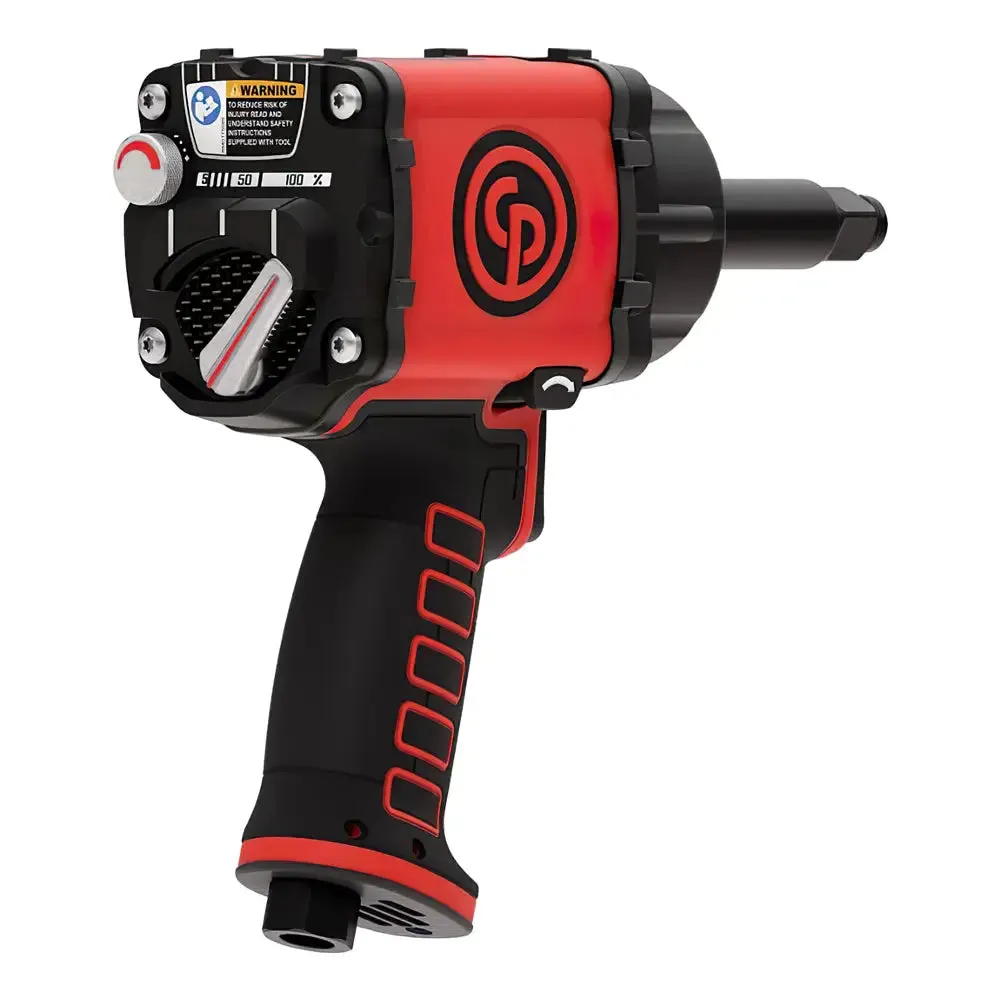

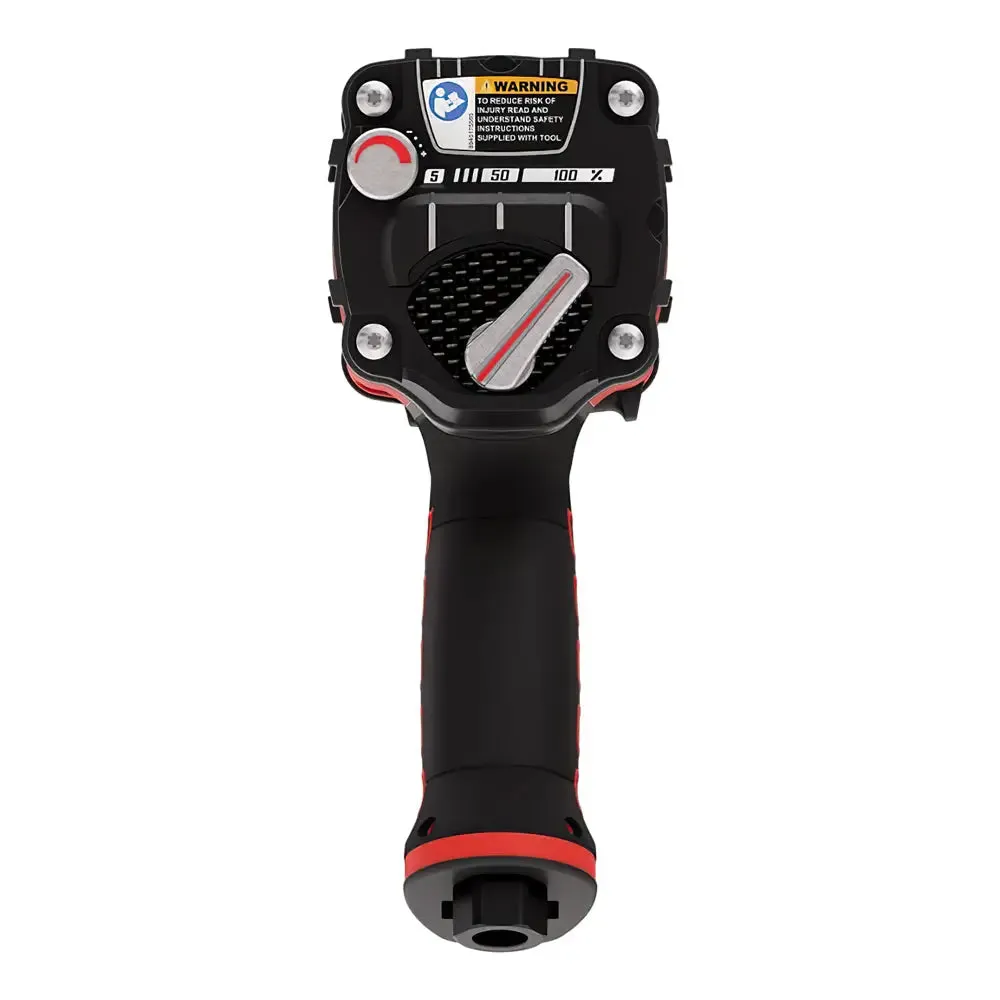

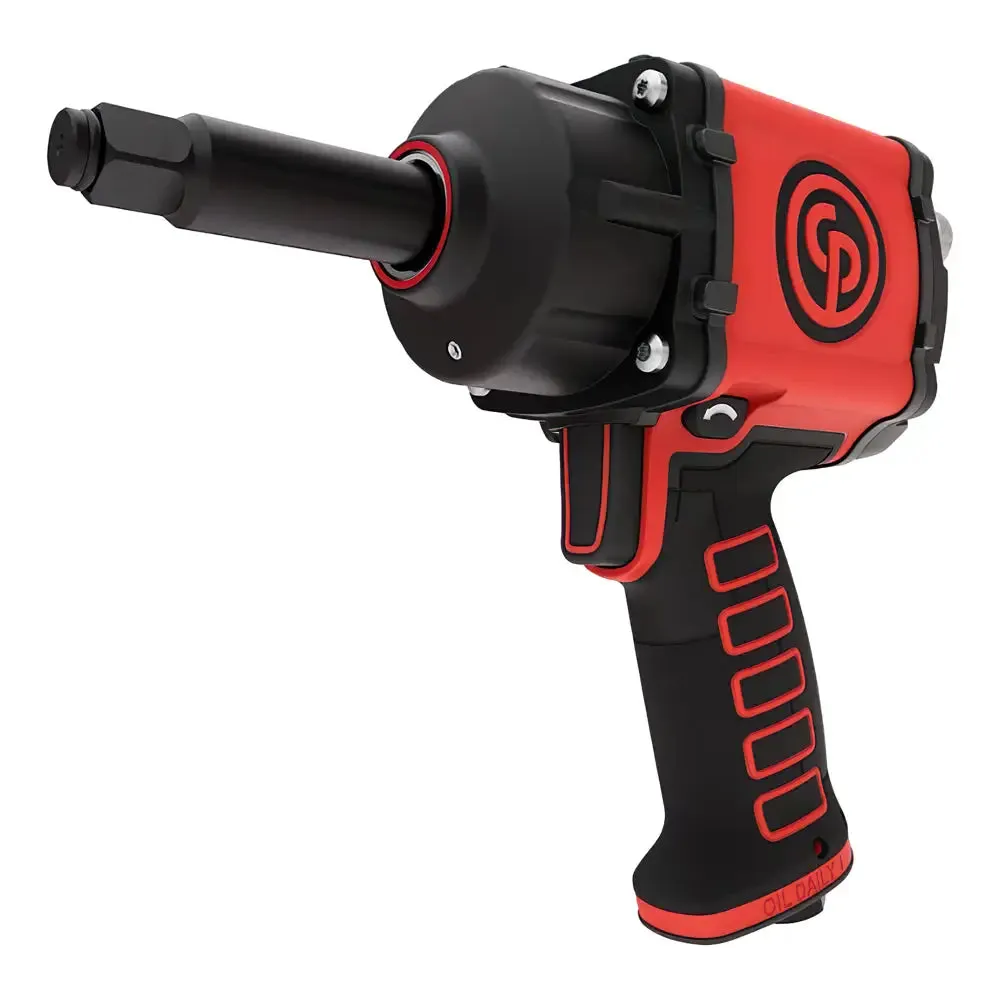

The Chicago Pneumatic CP7755-2 1/2" Drive Impact Wrench combines ergonomic design, lightweight construction, and impressive durability for ultimate comfort and safety. Featuring an adjustable power control system ranging from 5% to 100% of maximum torque, this pistol grip-style wrench ensures complete power control. With a composite motor housing weighing only 4 lbs (1.85 kg), it offers high accessibility and maneuverability. The twin hammer mechanism and bumpers throughout the tool enhance durability, while the bi-material and bi-color handle and trigger provide a comfortable grip. Experience improved safety and efficiency with this reliable impact wrench.
Features:
- Complete power control with adjustable torque settings
- Ergonomic and lightweight design for high accessibility and maneuverability
- Durable twin hammer mechanism and composite motor housing
- Bi-material handle and trigger for improved comfort during use
- Enhanced safety with bumpers and friction ring socket retainer
Benefits:
- Complete power control
- High accessibility/maneuvrability
- Ergonomic
- Lightweight
- High durability
- High comfort
- Improved safety
Specs:
Part number: 8941077552Actual air consumption: 3.9 cfm
Air inlet thread size: 1/4 in
Blows per minute: 1200
Box dimensions: 10,7x8,2x3,7 in
Clutch type: Twin hammer
Dimension
- A: 4.4 in
- B: 2.18 in
European
- Directives: 2006/42/EC (17/05/2006)
- Sound standard: EN ISO 15744
- Standards: EN ISO 11148-6:2013
Free speed: 7700 rpm
- Air consumption: 5.6 cfm
Handle type: Pistol
Height: 7.83 in
Length: 8.62 in
Maximum Torque
- Fwd: 796 ft.lbs
- Reverse: 960 ft. lbs
Min. hose size: 3/8 in
Net weight: 4.3 lb
Power/weight ratio: 223 ft.lb/lb
Side to center: 1 1/2 in
Socket retainer: Friction ring
Sound
- Power: 105 dB(A)
- Pressure: 94 dB(A)
- Uncertainty: 3 dB(A)
Square drive: 12.7 mm
Vibration: 7.9 m/s²
- ISO: ISO-28927-2
- Uncertainty (K): 1.8 m/s²
Width: 3 in
Working Torque Range (fwd): 59 - 425 ft. lbs
Ref No.
CP7755 (Standard Model)
CP7748-2
Application:
Automotive repairsConstruction projects
Industrial maintenance
